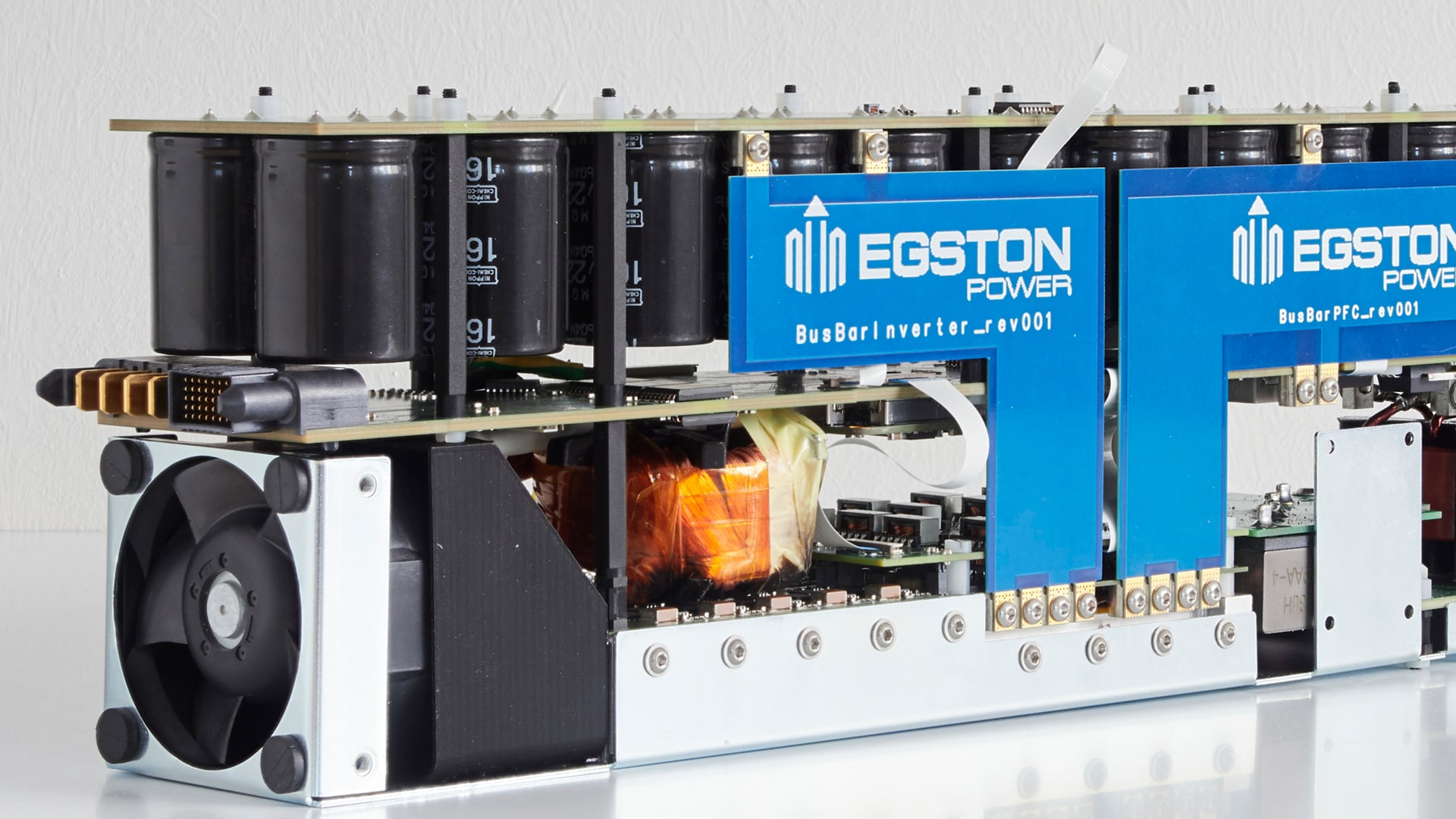

Power Electronics Test Systems
Egston Power
Product Matrix
| wdt_ID | UHPS | CSU100 | CSU200 | CSU200 2CH | CSU400 2CH | CSU800 | |
|---|---|---|---|---|---|---|---|
| 1 | Modes | AC & DC |
AC & DC |
AC & DC |
AC & DC |
AC & DC |
AC & DC |
| 2 | Output power | 10 kW | 100 kW | 200 kW | 2 x 100 kW (200kW) | 2 x 200 kW (400kW) | 750 kW |
| 3 | Scaleable up to | 60 kW |
1600 kW |
3200 kW |
1600 kW |
3200 kW |
6000 kW |
| 4 | Max AC voltage | 350 Vrms in 1-Phase (707 Vrms in series 1-Phase) |
555 Vrms in 1-Phase (1000 Vrms in 1-Phase series) |
555 Vrms in 1-Phase (1000 Vrms in 1-Phase series) |
555 Vrms in 1-Phase (1000 Vrms in 1-Phase series) |
555 Vrms in 1-Phase (1000 Vrms in 1-Phase series) |
555 Vrms in 1-Phase (1000 Vrms in 1-Phase series) |
| 5 | Max AC current | 32 Arms |
360 Arms |
360 Arms |
480 Arms |
720 Arms |
960 Arms |
| 6 | Max DC voltage | 500 V (1000 V) |
820 V (1500 V) |
820 V (1500 V) |
1500 V (3000 V) |
1500 V (3000 V) |
820 V (1500 V) |
| 7 | Max DC current | 40 A |
840 A |
840 A |
1120 A |
1120 A |
3360 A |
| 8 | Bandwidth | 50 kHz Large Signal 100 kHz Small Signal |
5 kHz Large Signal 15 kHz Small Signal |
5 kHz Large Signal 15 kHz Small Signal |
5 kHz Large Signal 15 kHz Small Signal |
5 kHz Large Signal 15 kHz Small Signal |
5 kHz Large Signal 15 kHz Small Signal |
| 9 |
Multi-Purpose Turnkey
Power Amplifiers
We provide the most versatile high-power PHIL test and emulation platforms currently on the market. Accessories like Digital Oscilloscope, Simulation Models and CABINET I/O Box can be found here.
CSU100
The CSU100 is a galvanically isolated bidirectional 100kVA emulation and test system with either four or six independent four-quadrant power amplifiers.
CSU200
The CSU200 is a galvanically isolated bidirectional 200kVA emulation and test system with either four or six independent four-quadrant power amplifiers.
UHPS
UHPS (Ultra High Bandwith PHIL System) is a galvanically isolated bidirectional 10 kVA / 10 kW emulation and test system developed and produced by EGSTON Power Electronics.
Programmable four-quadrant
Sources & Emulators
The programmable source & load solutions are based on our COMPISO System Units and cover a wide range of use case.
AC Source & Load
Standardized high-bandwidth AC test solutions provided together with ad-hoc programmable scenarios are scalable up to 1.2MVA.
DC Source & Load
Standardized high-bandwidth DC test solutions provided together with ad-hoc programmable scenarios are scalable up to 1.2MVA.
multi-purpose turnkey
PHIL Solutions
The COMPISO System Unit is a galvanically isolated bidirectional emulation and test system with either four or six independent four-quadrant power amplifiers. It can operate in one of several predefined AC and DC operation modes as well as in a wide range of user-defined HIL-based modes.
