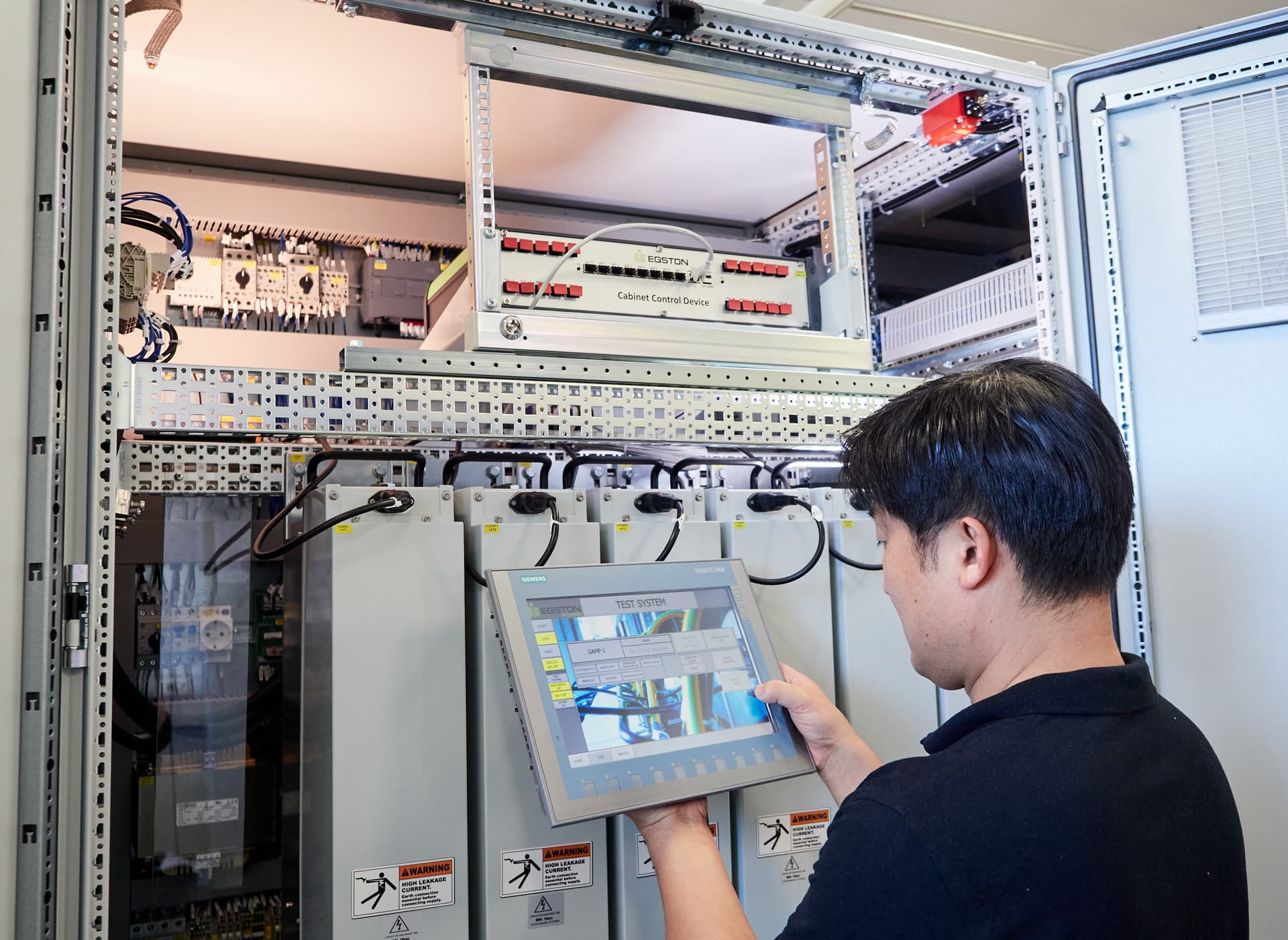

Engineer in front of Compiso with a Test System in his hands

Products

CSU 200 Power Amplifier

200kVA multi-purpose turnkey power amplifier

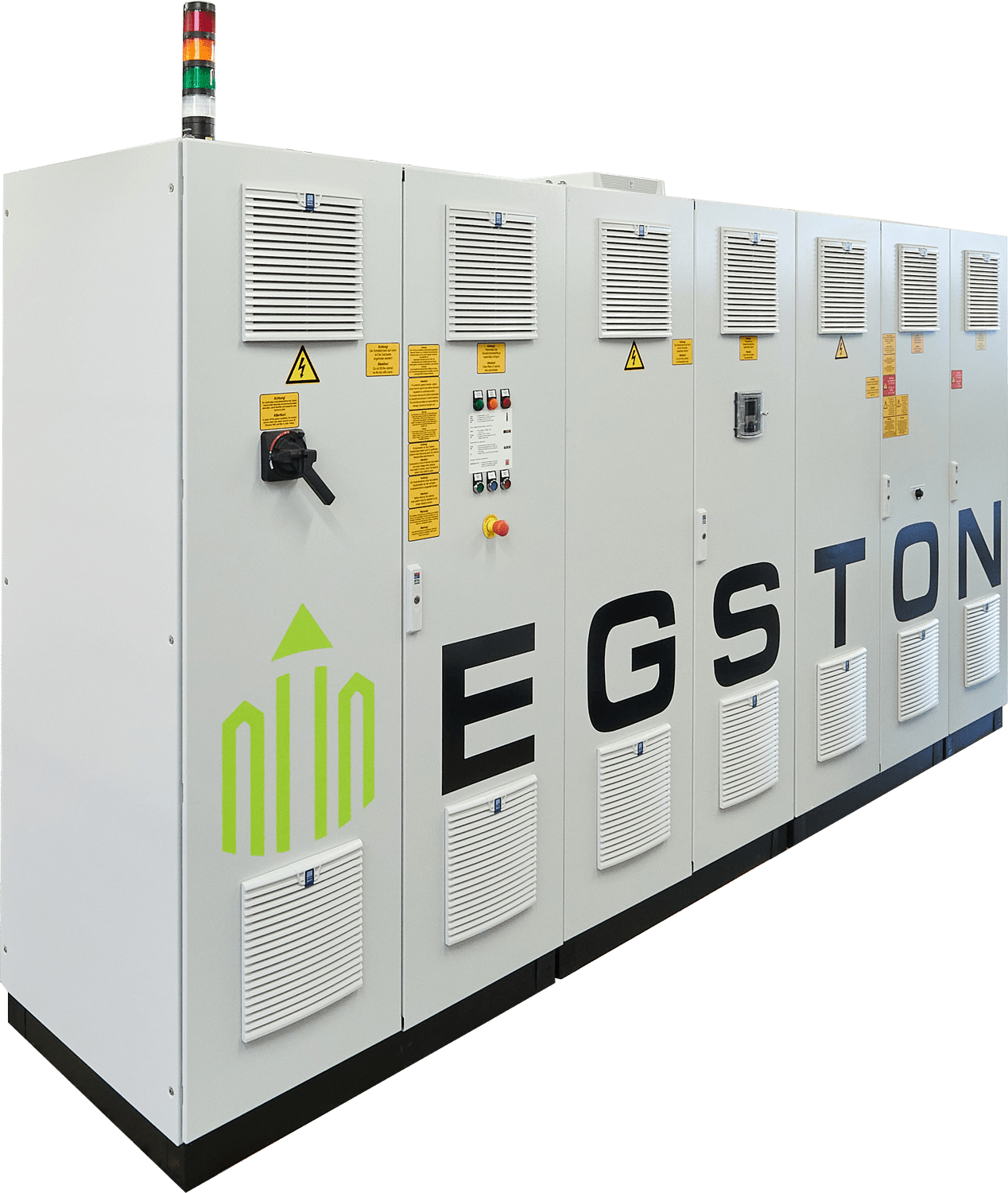

COMPISO System Unit – CSU200

 The CSU200 is a galvanically isolated bidirectional 200kVA emulation and test system with either four or six independent four-quadrant power amplifiers. It can operate in one of several predefined AC and DC operation modes as well as in a wide range of user-defined HIL-based modes. Featuring current-control, voltage-control and mixed-mode capability combined with 5kHz large-signal bandwidth and 15kHz small-signal bandwidth, the CSU200 is the most versatile high-power PHIL test and emulation platform currently on the market. The CSU200 system can be controlled by external HIL systems or by EGSTON real-time processors, via a fast fiber-optic or analog interface.

FUTUREPROOF & VERSATILE

ULTRA-HIGH BANDWIDTH

Up to 15kHz, variety of waveform, harmonics, sub- and inter-harmonics to cover even most demanding scenarios

AC & DC OUTPUT

AC & DC signals can be generated out of one system

BIDIRECTIONAL POWER FLOW

The system can be operated as source and/or load and power can be fed back to the grid

MODULAR DESIGN

Several systems can be connected either in series or parallel to increase power, voltage or current up to 1,2MVA

COMPISO CSU200

Solutions

CSU200

Made in Austria

Research & Development

EGSTON Power Electronics aims to develop products that consistently meet the highest expectations for quality, reliability and function. Our products are mounted in racks, yet we are not afraid to think outside the box, and we keep doing that throughout all phases of every single project to achieve total customer satisfaction. To this same end, we also maintain productive collaborations with internationally reputed research and education facilities.

Virginia Polytechnic Institute and State University
Blacksburg, USA
testing with CSU200 1GAMP6

Logo Virginia Polytechnic Institute and State University
Engineer with measuring instrument in front of the COMPISO CSU200

On-Site Service

Field Application and Training

Take advantage of our comprehensive after-sales service. Our on-site service team will be at hand for smooth installation and commissioning, complete with detailed hands-on training for your staff.
